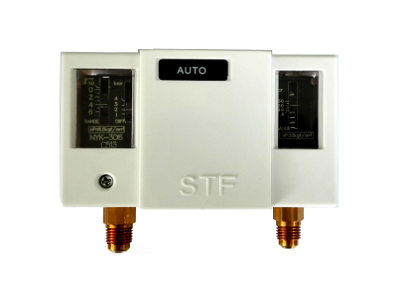

NYK Series Controller

NYK Series improved high-performance pressure controller for pressure control and pressure protection. When the system pressure reaches the set value, the switch automatically cuts (or turns on) the circuit. contact us
  • Technical Parameters
  • Accessories
  • Download

General

NYK Series improved high-performance pressure controller for pressure control and pressure protection. When the system pressure reaches the set value, the switch automatically cuts (or turns on) the circuit.

特色

- The new bellows welding structure and technology, external leakage is close to zero risk.- With a new structure design, the precision of pressure and differential pressure adjustment is high, and the repeated operating points are stable.- In addition to the automatic reset type, it is also equipped with a high pressure manual reset type and a high and low pressure manual reset type.- With pressure and differential pressure adjustment indicated by the scale.- The connector is a standard bell mouth connector, M12 x 1.25 or 7/16"-20 UNF thread.- Medium temperature: -20°C to +120°C; Ambient temperature: -20°C to +70°C.


Other Technical Data



Note: E is an English joint; F is a copper bellows, only applicable to Freon, not suitable for ammonia refrigerant; S is manual reset; SS is high and low pressure manual reset; MG is capillary connection.

Electrical indicators

电气目标 Electrical Data.png
