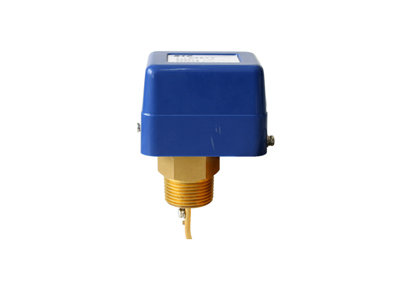

F1 Flow Switch
F1 Flow Switch Used as a fluid flow control or cut-off protection in the pipeline. When the fluid flow reaches the set value, the switch automatically cuts (or turns on) the circuit. contact us- Technical Parameters
- Accessories
- Download
General

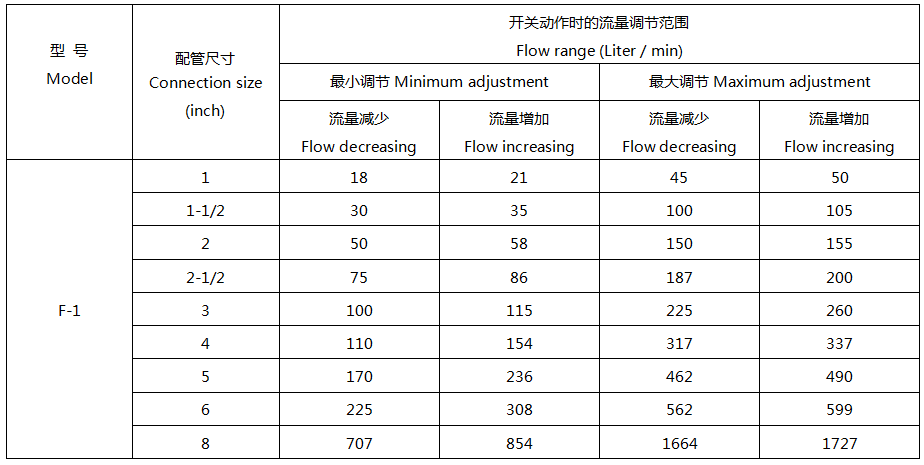

- F-1 is used for flow control or cut-off protection. When the flow reaches- the setting volume, the switch turns on/off automatically.- The setting point is adjustable.- Suitable mediums are water, oil, glycol and other non-hazard liquid.- Standard 1” NPT or other special connecting.- Maximum working pressure: 10bar- Five paddles to fit with pipes of different diameters.- Medium temperature: 0 ~ +120ºCOther Technical Data

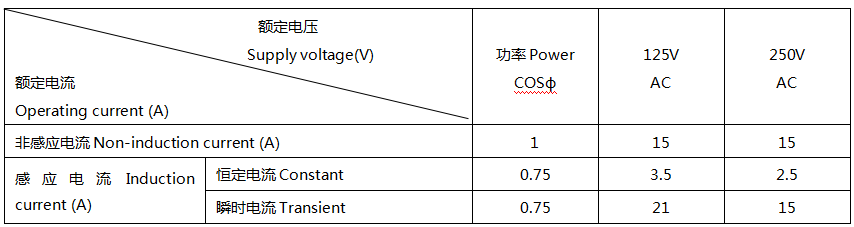

Electrical indicators

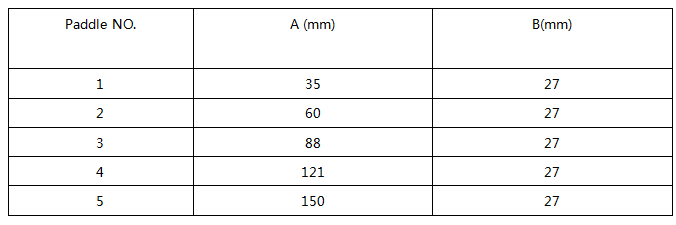

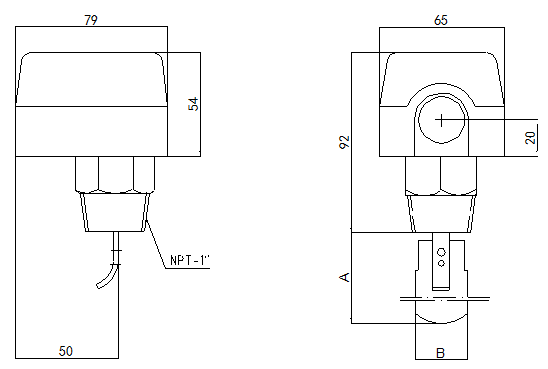

Dimensions
