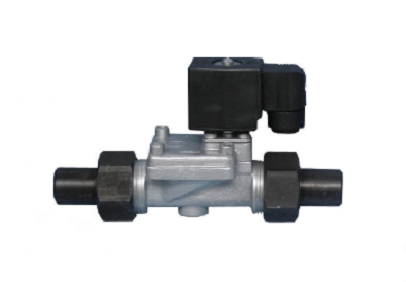

ADF Series
Coils for ADF Series solenoid valve are plastic-encapsulated. It features moisture proof ,shock proof and anti-corrosive. All parts are made of stainless steel. It can be used in pneumatic, hydraulic and water supply system for the application of ammonia and Freon. contact us- Technical Parameters
- Accessories
- Download
General
Coils for ADF Series solenoid valve are plastic-encapsulated. It features moisture proof ,shock proof and anti-corrosive. All parts are made of stainless steel. It can be used in pneumatic, hydraulic and water supply system for the application of ammonia and Freon.Characteristics

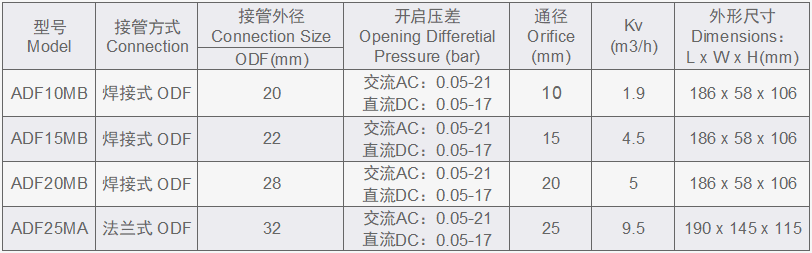

- Suitable for ammonia, HFC, HCFC ,clean water, ≤4°viscosity machine oil- Coil type: AC: 24V, 36V, 110V, 220V DC: 12V, 24V- Opening pressure diff. AC: 0.05 – 21 bar DC: 0.05 – 17 bar- Max working pressure:30bar- Medium temperature: -25℃ to 105℃Other Technical Data
The Kv value is the water flow in m3/h at a pressure drop across valve of 1 bar，ρ=1000kg/ m3.
